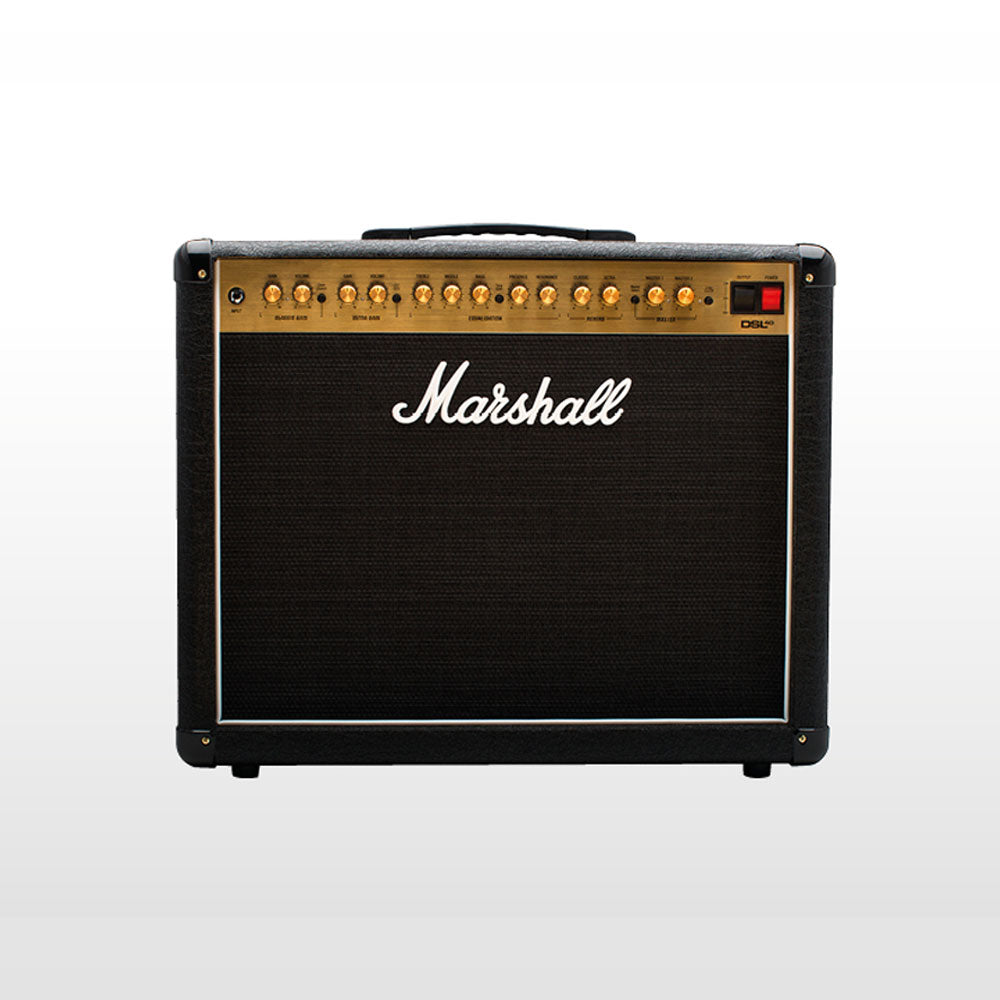

The DSL40 has been designed with a 12” G-12 v-type speaker for those who need exceptional tone and flexibility. With rich functionality including the ability to move between two sounds within each gain channel, players can experiment and release their personality through sound.
KEY FEATURES
CHOOSE YOUR TONE
Using the reverb, FX loop, tone shift controls and two footswitchable gain channels you can create a style that suits you and another to release your alter ego.
VARY THE OUTPUT
The DSL40 has five speaker outputs giving you plenty of flexibility and the ability to record, with a standby function for silent recording as well. It can be taken from the bedroom, to the studio and onto a gig.
MIDI COMPATIBILITY
The amps features can be controlled using any MIDI equipment, so for those technical players you can play this amp and different MIDI equipment at any one time.
STAND OUT ON STAGE
The DSL40 has two master volumes for those loud solo moments.
PICK YOUR ENVIRONMENT
Power can be reduced from 40W to 20W without affecting the quality meaning the DSL40 can be used in multiple environments with confidence.
TECHNICAL SPECIFICATION
GENERAL
- Model DSL40CR
- Range DSL
- Technology Valve
- Channels 2 (Split) "Ultra gain" and "classic gain"
ELECTRONICS
- Output wattage 40W (with power reduction option to 20W)
- Outputs Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), 1 x 1/4" jack emulated line out
- Inputs 1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in MIDI in, footswitch
- Controls Classic gain channel (gain, volume, clean crunch switch), ultra gain channel (gain, volume, OD1/OD2 switch), treble, middle, bass, tone shift switch, presence, resonance, reverb (classic gain channel), reverb (ultra gain channel), master select switch, master volume I, master volume II, loop on/off switch, low power option (on rear)
- Effects Digital reverb
- Effects loop Yes, series, send/return
SPEAKERS
- Speaker configuration 1x12"
- Speaker model Celestion V-Type speaker (16Ω, 80w)
- Unit impedance 16Ω
VALVES
- Preamp valves 4 x ECC83
- Power amp valves 2 x EL34
ACCESSORIES
- Footswitch PEDL-90012 included. Compatible with PEDL-91016 modes include: 1 - Clean (classic green) 2 - Crunch (classic red) 3 - OD1 (ultra green) 4 - OD2 (ultra red) 5 - Master 1/Master 2 (toggle) 6 - FX Loop on/off
- Cable Detachable power cable included
- Dust cover M-COVR-00116 (sold separately)
DIMENSIONS (INCLUDING FEET AND HANDLE)
- Weight 22.9 kg / 50 lbs
- Width 620 mm / 24.4"
- Height 490 mm / 19.3"
- Depth 252 mm / 9.9"
