Features
Components and construction
Components and construction
- 4.5-inch (114 mm) woven composite low-frequency transducer
- 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
- Rear-firing acoustic port for superior bass-frequency reproduction
- Optimized, resonance-suppressing internal bracing
- High- and low-frequency tuning controls
- Front-panel Volume control for speakers and headphone amplifier
- 50 watt (25W/side), Class AB bi-amplification
- RF interference, output current limiting, over-temperature, transient, and subsonic protection
- Amplifier “soft start” feature eliminates popping on power-up
- Internal power supply with IEC connector
- Power switch with on/off LED

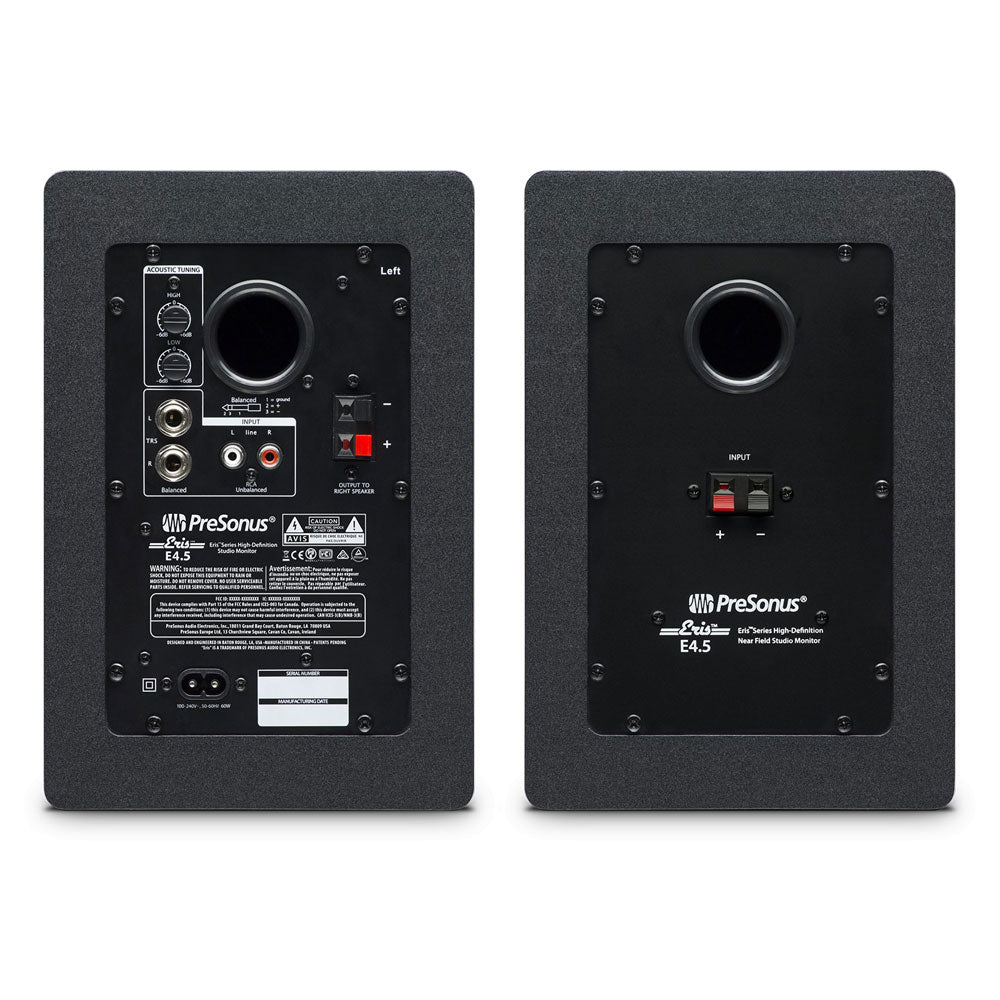

- Balanced ¼-inch TRS, unbalanced 1/8-inch stereo, and RCA inputs
- Integrated stereo headphone amplifier with front-panel 1/8-inch output
- Included Accessories
- 1/8" TRS to Stereo RCA cable
- Stereo RCA to Stereo TS cable
- Studio One Prime and Studio Magic Software Suite
- Inputs
- 1- Stereo 1/8"
- 2- Balanced ¼” TRS
- 2- Unbalanced RCA
- Frequency Response 70 Hz - 20 kHz
- Crossover Frequency 2.8 kHz
- LF Amplifier Power 25W/speaker
- HF Amplifier Power (not biamped)
- Peak SPL (@ 1 meter) 100 dB
- LF Driver 4.5"
- HF Driver 1” silk dome
- Input Impedance 10 kΩ
- Volume Range A-type taper
- MF Control Variable (-6 to +6 dB, center at 100 Hz)
- HF Control Variable (-6 to +6 dB, center at 10 kHz)
- RF interference
- Output-current limiting
- Over-temperature
- Turn-on/off transient
- Subsonic filter
- External mains fuse
- 100-120V ~50/60 Hz or 220-240V ~50/60 Hz
- Vinyl-laminated, medium-density fiberboard
- Physical
- Width 6.4" (163 mm)
- Depth 7." (180 mm)
- Height 9.5" (241 mm)
- Weight 13 lb. (5.9 kg)
