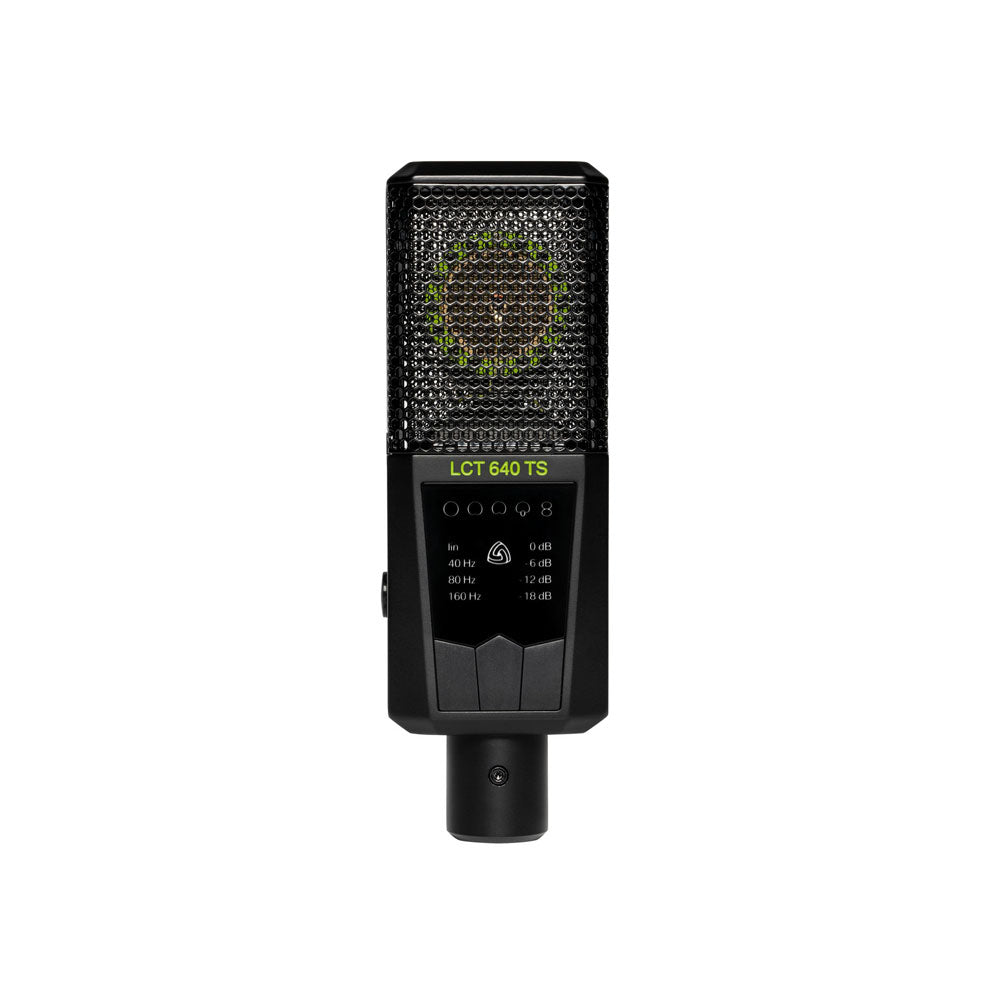

Next-gen multipattern microphone.LCT 640 TS
- 1" multi-pattern studio microphone
- Full, crisp, and well-balanced sound
- Revolutionary Dual Output Mode
- POLARIZER plugin to create any pattern after the fact
- Stereo capabilities
Perfectly-in-phase stereo recording, with a single mic.
You can use a single LCT 640 TS to record in stereo by switching to Dual Output Mode.
Just point the mic sideways to the source and adapt the stereo width in the mix.
Specifications
- Type Condenser, externally polarized
- Acoustical operating principle Pressure gradient transducer
- Diaphragm 3 micron gold sputtered Mylar
- Transducer Ø 25.4 mm, 1 in
- Polar pattern (Dual Output Mode) Create any polar pattern in post-production
- Polar pattern (Multi-Pattern Mode) omni, wide cardioid, cardioid, supercardioid, figure-8
- Sensitivity
- 31.4 mV/Pa, -30.1 dBV/Pa (cardioid)
- 30.3 mV/Pa, -30.3 dBV/Pa (omni)
- 34.1 mV/Pa, -29.4 dBV/Pa (figure-8)
- Equivalent noise level 10 dB (A), cardioid
- Max. SPL for 0.5 % THD 134 dBSPL, 0 dB pre-attenuation
- Signal / noise ratio 84 dB (A)
- Dynamic range 124 dB (A)
- Pre-attenuation pad
- 0 dB
- -6 dB
- -12 dB
- -18 dB
- Low-cut filter
- linear
- 40 Hz (12 dB/oct)
- 80 Hz (12 dB/oct)
- 160 Hz (6 dB/oct)
- Internal impedance 110 Ω
- Rated load impedance 1,000 Ω
- Supply voltage 48 V ± 4 V
- Current consumption 5.1 mA
- Mic enclosure Zinc die cast
- Connector Gold plated 3-pin XLR + Mini 3-pin XLR
- Microphone dimensions 158 x 52 x 36 mm, 6.22 x 2.04 x 1.42 in
- Microphone net weight 425 g, 14.9 oz
