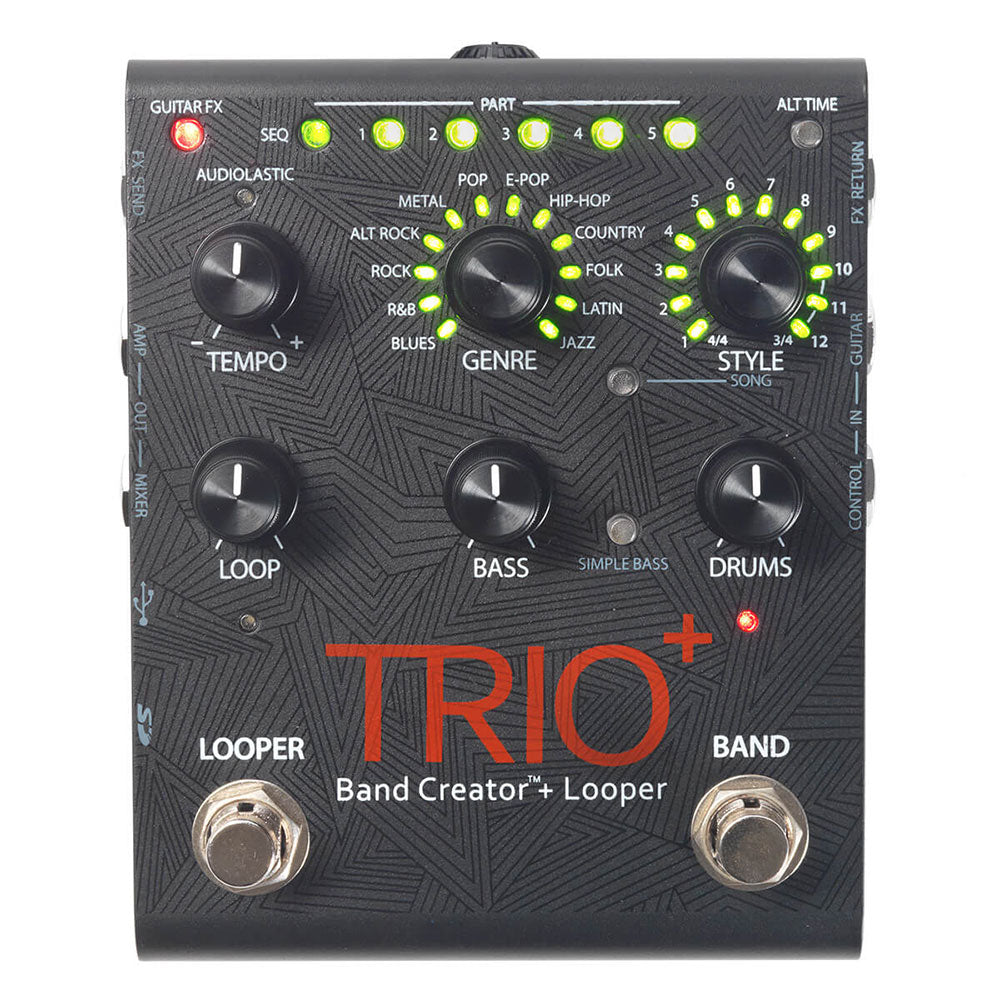

The TRIO+ is a simple-to-use guitar pedal that listens to the way you play and automatically generates bass and drum parts that match your song. Just plug your guitar into the TRIO+, press the Band footswitch to teach the TRIO+ your chords and rhythm, then press the Band footswitch again to start playing with your own personal band!
Bass and drum levels can be adjusted for the perfect mix using the TRIO+’s Bass and Drums knobs. The TRIO+ also features a Simple Bass button lets you select between 3 bass line modes for busy or simple bass lines. Pushing the Band Creator™ paradigm further, the TRIO+ also allows you to loop and custom sequence your looped guitar parts to create full songs on the fly.
Press the TRIO+’s Looper footswitch to record a loop along with an unlimited number of overdubs. The Loop level can be individually controlled using the TRIO+’s Loop knob. Loops can be recorded by themselves, operating just like a traditional looper, or along with the band. You can also apply built-in effects to your guitar signal by enabling the TRIO+’s Guitar FX button, or connect your favorite effects to the TRIO+’s FX Send and FX Return jacks. The TRIO+ provides 12 music genres to choose from including Blues, R&B, Rock, Alternative Rock, Metal, Pop, Electronic Pop, Hip-Hop, Country, Folk, Latin, and Jazz. 12 song styles are available for each genre and can be selected using the TRIO+’s Style encoder, including selection between 3/4 and 4/4 time signatures. Multi-colored LEDs around the TRIO+’s Style encoder indicate which styles best match your song. The TRIO+ can learn up to 5 different song parts, perfect for creating an intro, verse, chorus, bridge and outro. Song parts can be recalled on-the-fly as the song plays back or pre-programmed as a sequence for automated playback. An optional DigiTech FS3X Footswitch can be connected to the TRIO+’s Control In jack for additional handsfree control with 3 modes of operation to select from. Up to 12 songs along with loops can be stored to the TRIO+’s Micro SD Card (included). Need to create more songs? No problem. Just insert a new SD Card and you’re ready to start teaching the band your new songs. To manage all your songs and loops on a computer, download the free Librarian Manager software from digitech.com, available for Windows® and Mac®. The TRIO+ offers independent Tempo, Genre, Style, Loop Level, Bass Level, Drums Level, Headphone Output Level controls; Guitar, FX Return and Control Inputs; Amplifier, Mixer, FX Send and Headphone Outputs; Built-in Guitar Effects (relative to music genre); a Soft Click Footswitch and includes a 9V DC adapter.
SPECIFICATIONS
- CONTROLS Tempo, Genre, Style, Loop, Bass, Drums, Headphone Volume
- BACKLIT BUTTONS Guitar FX, Seq, Part 1-5, Alt Time, Song, Simple Bass
- FOOTSWITCHES Looper, Band
- LEDS Genre types, Style 1–12, Audiolastic, Looper, Band
- JACKS Power, Control In, Guitar In, FX Return, FX Send, Amp Out, Mixer Out, Headphone
- OTHER Mini USB port, microSD card slot
- BIT DEPTH 24-bit
- SAMPLE RATE 44.1 kHz
- SIGNAL-TO-NOISE RATIO 110dB, A-weighted
- MAXIMUM RECORDING TIME 230 seconds per song part — based on a minimum 50 BPM and 48 bars per part
- USB TYPE Mini-B
- SD CARD TYPE microSDHC, Class 10
- SD MIN/MAX STORAGE SIZE 8 GB/32 GB
- POWER REQUIREMENTS 9 VDC external power adapter
- POWER CONSUMPTION 7.2 W
- CURRENT DRAW 800 mA
Dimensions
- LENGTH 5.4" (137mm)
- HEIGHT 2.5" (64mm)
- WIDTH 4.25" (108mm)
- WEIGHT 1.46 lb. (622g)
Audio Output
- AMP OUTPUT TYPE Unbalanced, 1/4" TS
- AMP OUTPUT IMPEDANCE 1 kΩ
- MIXER OUTPUT TYPE Unbalanced, 1/4" TS
- MIXER OUTPUT IMPEDANCE 1 kΩ
- FX SEND OUTPUT TYPE Unbalanced, 1/4" TS
- FX SEND IMPEDANCE 1 kΩ
- HEADPHONE OUTPUT TYPE 1/8" (3.5 mm) Stereo Mini Jack
- HEADPHONE OUTPUT IMPEDANCE 120 Ω
Audio Input
- GUITAR INPUT TYPE Unbalanced, 1/4" TS
- GUITAR INPUT IMPEDANCE 1 MΩ
- FX RETURN INPUT TYPE Unbalanced, 1/4" TS
- FX RETURN IMPEDANCE 1 MΩ
- CONTROL INPUT TYPE 1/4" TRS (compatible with DigiTech FS3X)
